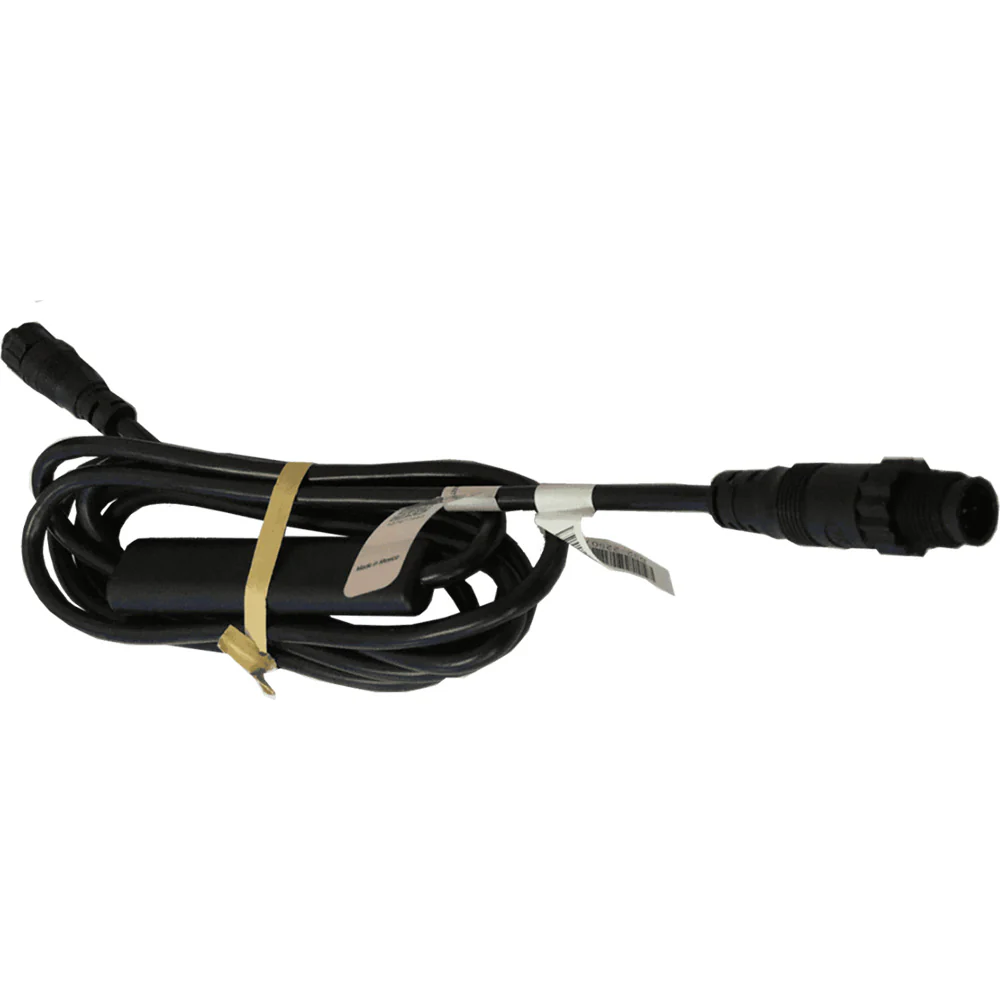

WS310 Wired Interface

WS310 (wired) Interface for use with WS310 Wind Sensor, allows connection to your NMEA 2000® network.

Features:

• Interfaces a WS310 wind sensor to an NMEA 2000 network

Specifications:

• NMEA 0183 Sentences supported: MWV, R


• NMEA 2000 Connectivity: 1 x Micro-C port, 1 LEN


• Supply Voltage: 12V DC (9 - 16V DC)


• Operating Temperature Range: -15°C to +55°C (5°F to 131°F)


• Storage Temperature Range: -20°C to +60°C (4°F to 140°F)


• Waterproof Rating: IPX7


• Compass Safe: 300mm (12")


• Dimensions W x H x D: 90 x 20 x 10mm (3.5 x 0.8 x 0.4")


• Warranty: 2 Years

Enhance your sailing experience with the B&G WS310 Wired Interface. This reliable interface is specifically designed for use with the WS310 Wind Sensor, allowing seamless integration into your NMEA 2000® network. With its robust waterproof rating, this interface ensures durability even in challenging marine conditions.

Features:
* Interface Type: Connects WS310 wind sensor to NMEA 2000 network
* NMEA 0183 Support: Supports MWV and R sentences
* Connectivity: 1 x Micro-C port and 1 LEN
* Supply Voltage: Operates at 12V DC (9 - 16V DC)
* Operating Temperature Range: Functions in -15?C to +55?C (5?F to 131?F)
* Storage Temperature Range: Safe for storage from -20?C to +60?C (4?F to 140?F)
* Waterproof Rating: Rated IPX7 for water resistance
* Compass Safe Distance: Maintains a safe distance of 300mm (12") from compass
* Warranty: Includes a 2-year warranty
