46ST E1 Electric Full Stainless Winch - 24V

Andersen E1 Electric Winches allow you to hoist and trim sails of any size at the push of a button. They remove the requirement for physical strength, making it possible for any crew member to easily and safely control lines and sails. Perfect for enjoying sailing short-handed or with friends and family.

In addition to the host of standard features that have made Andersen self tailing winches the benchmark for quality and performance Andersen E1 Electric Winches are engineered with unsurpassed levels of functionality, monitoring and protection.

Ease of Installation
Internal contractors and controller, with no separate control box required, mean a more reliable, neater and lighter installation. Simplified electrical installation requires just the connection of positive and negative power cables to the motor terminals and the connection of the push button using the included output cable. Marine grade circuit breakers are also available for protection and isolation.

Efficient, high quality motor
At the heart of the E1 winch is a high quality European engineered and manufactured series wound motor. Carefully matched with the optimal gearbox they deliver high speed at low load for fast sheeting in, and low speed at high load for safe, fine tuning when trimming. They are available in 12 Volt and 24 Volt models providing smooth and quiet operation across a wide working load range.

Illuminated intelligent Push Button
E1 winches are supplied withpush button with integrated LEDwhich illuminates when power to the winch system is on. The push button incorporates a hinged safety cover to prevent inadvertent winch operation and is water resistant rated to IP67. The push button also acts with the controller to flash status codes that assist with trouble shooting in the event of overload or where other system protection intervention occurs. A cable for connection of the push button is included for convenient installation.

Unrivalled level of monitoring and protection:

Integrated Overload Protection - The controller is pre-set to stop the winch if the Maximum Pull Load is exceeded. Operation can resume within a few seconds when the load returns below the limit

Thermal Overload Protection The motor is fitted with a thermal cutout that disables the motor in case of overheating; it automatically resets after the temperature returns to normal.

Reverse Polarity Protection An integrated 5 Amp fuse protects the motor against incorrect cable connection.

Accidental Start Protection Winch operation is disabled if the push button is already inadvertently pressed when the power supply is turned on at the circuit breaker or battery.

Low Voltage Detection - Operation is disabled if the battery charge level is low, which prevents further drain on batteries and avoids triggering low-voltage reset of navigation instruments and other electronic devices.

Continuous Run Time Limit Operation is disabled if continuous run time exceeds 10 minutes.

Manual operation
2-speed manual operation is always available as a backup; to winch beyond the pre-set maximum pull load (but below the winch Max Working Load) or just for the experience.

Specifications

Drum: 3-1/2 in. (89 mm)

Base: 7-1/8 in. (181 mm)

Height: 7-15/16 in. (202 mm)

Line Entry: 3-9/16 in. (90 mm)

Line Size: 5/16-9/16 in. (8-14 mm)

Weight: 46.3 lbs. (21 kg)

Max Deck Thickness: 2-1/4 in. (57 mm)

Motor Depth: 7-1/2 in. (191 mm)

Gear Length: 2-9/16 in. (65 mm)

Motor Length: 11-13/16 in. (300 mm)

The ANDERSEN 46ST E1 Electric Full Stainless Winch is designed for effortless sail handling aboard your vessel. With its 24V power system, this winch allows you to hoist and trim sails at the mere push of a button, eliminating the need for physical strength. Ideal for short-handed sailing or family outings, the E1 winch guarantees a safer and more enjoyable experience on the water.

Engineered for performance, the ANDERSEN E1 winch incorporates features that set it apart in functionality and protection. The internal contractors and controller streamline installation, requiring only the connection of power cables and the push button. The high-quality motor, engineered in Europe, delivers efficiency and quiet operation, making it perfect for various sailing conditions. Moreover, it comes equipped with an illuminated push button that includes safety features designed to prevent accidental operation, ensuring peace of mind while you navigate.

Additionally, the E1 winch is packed with monitoring and protection capabilities, including integrated overload and thermal protection. These features help safeguard your equipment from damage, while low voltage detection prevents battery drain. With manual operation always available, you can rely on this winch for consistent performance under any circumstances. Elevate your sailing experience with the ANDERSEN 46ST E1 Electric Winch.

Features:
* Feature: Electric winch for effortless sail handling
* Feature: 24V power system for easy operation
* Feature: Streamlined installation with no separate control box
* Feature: High-quality European engineered motor for efficiency
* Feature: Illuminated push button with safety cover
* Feature: Integrated overload protection for added safety
* Feature: Thermal overload protection to prevent motor damage
* Feature: Low voltage detection to protect your batteries
* Feature: Manual operation available as a backup

Winches

ANDERSEN 46ST E1 Electric FS Winch - 24V RA2046011400

ANDERSEN RA2046211400 E1 Single Speed Electric Motor Conversion Kit for 46ST Winch - 24V

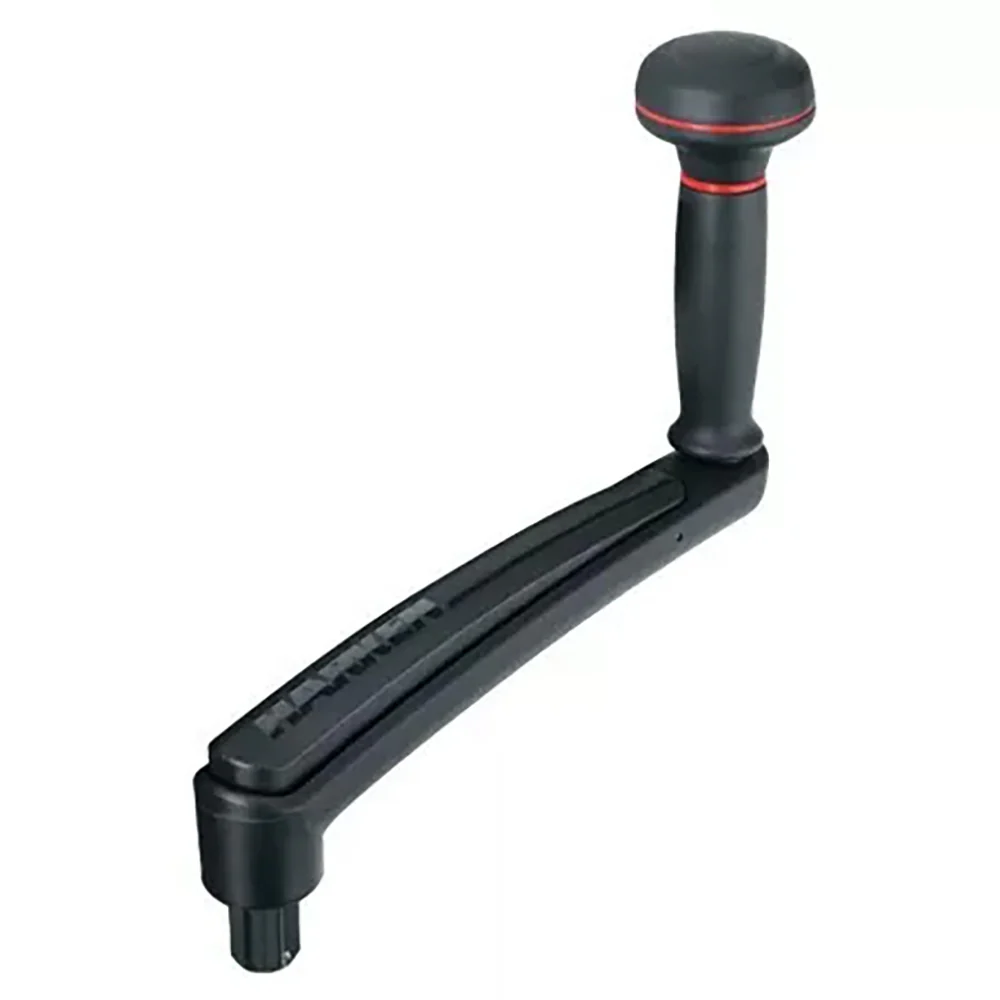

Harken Carbo OneTouch Locking Winch Handle
